433 Mhz Wireless Remote Control Switch EU FR Socket AC220V Smart Switch Universial Plug15A Electrical Outlets Adapters For Light

$66.21 – $183.96

SKU: 1005002624765461 Category:

Product Description

  • Brand Name: WenQia
  • Use: Universal
  • Use: Lighting
  • Use: Switch
  • Certification: CE
  • Certification: RoHS
  • Origin: CN(Origin)
  • Wireless Communication: RF
  • Support APP: No
  • Channel: 1
  • Package: Yes
  • Frequency: 433 MHz
  • Model Number: 2201Socket+EV1527
  • RF frequency: 433MHz
  • Working Voltage: AC 85~265V
  • Max current: 15A
  • Load Power: 3000W
  • Socket Size: 51*99*73mm(2.0*3.9*2.87in)
  • Socket Weight: 105g
  • Remote Control Battery: 2*CR 2016
  • Working temperature: -30~+80 Celsius
  • Remote operating mode: Toggle/ Latched Mode
  • Receiving Sensitivity: 97dbm
  • Amount of storage remote controls: 25 pieces
  • Support encoding: 1527 Learning code
  • RF Operating mode: ASK superheterodyne wireless reception
  • Receiving range: Open space is more than 50 meters
  • Application scenario: Family, Farm, Factory, Office, Supermarket
  • Application2: Light, LED, Lamps





433MHz Universal Wireless Remote Control Switch Electric Socket EU 220V Remote control plug 15A 1527 Learning Code Controller



Relay Receiver Board Parameter

  • Working Voltage  : AC 85~265V
  • Max current  :  15A
  • Load Current :  3000W
  • Size:  51*99*73mm(2.0*3.9*2.87in)
  • Weight :  105g
  • Remote Control Battery :  23A 12V(Not Include)
  • RF frequency  :  433MHz
  • Working temperature  :  -30~+80 Celsius
  • Receiving Sensitivity  :  >97dbm
  • Amount of storage remote controls  :  25 pieces
  • Support encoding  :  1527 Leaning code /2262 fixed code
  • RF Operating mode  :  ASK superheterodyne wireless reception
  • Receiving range  :  Open space is more than 50 meters
  • Remote operating mode  : Toggle Mode/Latched Mode





Use: Press *A* button -> The Home Appliances OR Light will turn ON;
           Press *A* button ->The Home Appliances OR Light will turn OFF.

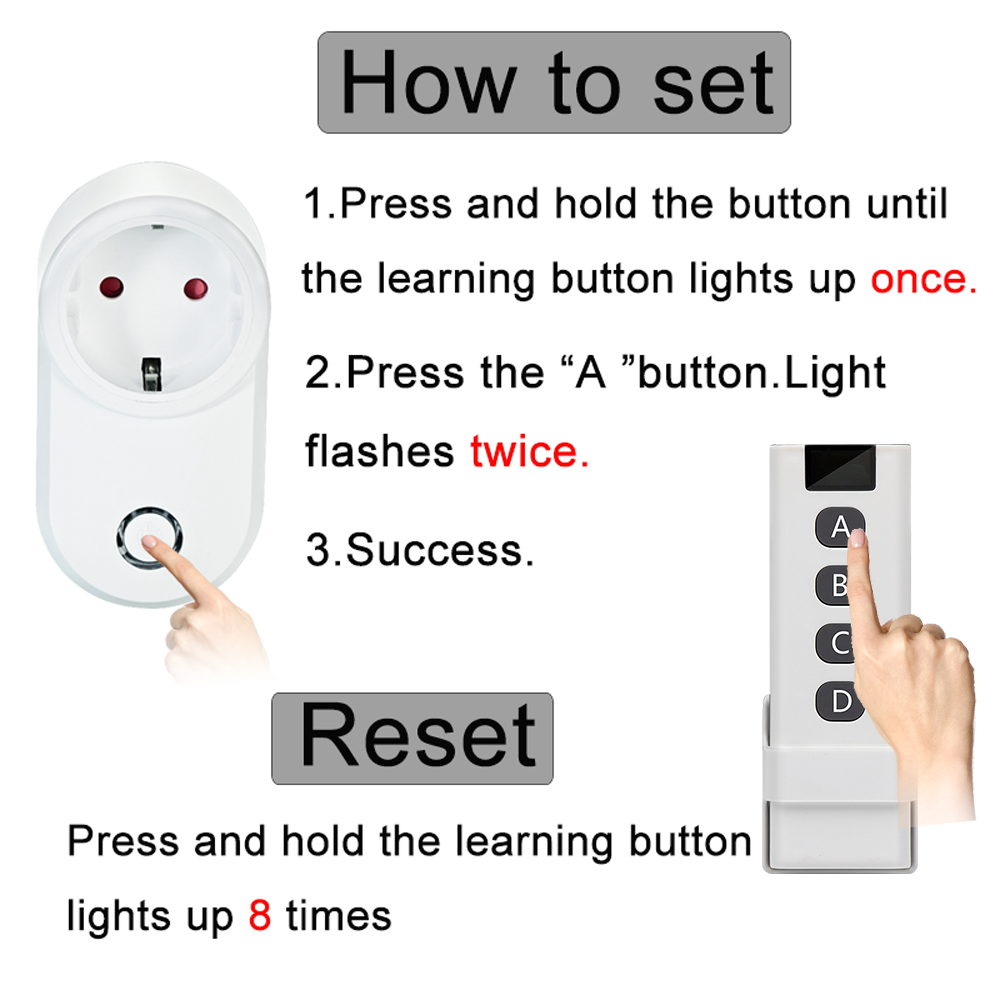

Setting: 1.According to the picture above,Press and hold the learning button until the indicator flashing twice .
                   2.Press the *A* button, the indicator flashing twice.
                   3.Success

How to clear the signal
Only one step :Press and hold the learning button until the indicator flashing 8 Times(about  7 seconds ).












*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*

d26a7d5d55fc828c8e31446c4dae91dd



Additional information

Color

1 RC 1 B, 1B, 2RC 1B, 3RC 1B, 4RC 1B
